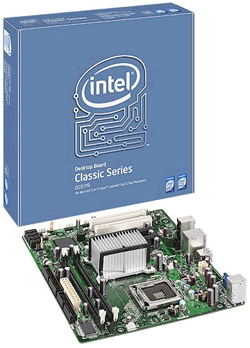

Intel BLKDG31PR MicroATX Motherboard
Intel BLKDG31PR MicroATX Motherboard
The Intel� Desktop Board DG31PR Classic Series has been optimized to deliver new levels of performance and reliability for home and business users. Intel G31, Video,PCI-E, DC-DDR2, 5.1A, 4sATA, Gbit LANAvailability: Phased Out
Features
The Intel Desktop Board DG31PR is built to support a range of processors including the Intel® Core™2 Quad processor (95W TDP) and the Intel® Core™2 Duo processor. This board can support up to 4GB of dual channel DDR2 800/667 MHz SDRAM. It also offers Intel® High Definition Audio with support for 5.1 surround sound, integrated 10/100/1000 Network connection and ample USB connectors for all your computer paraphernalia.Technical Specifications
| General | |
|---|---|
| Product Type: | Motherboard |
| Form Factor: | Micro ATX |
| Width: | 8.6 in |
| Depth: | 9.6 in |
| Compatible Processors: | Core 2 Duo, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence |
| 64-bit Processors Compatibility: | Yes |
| Processor Socket: | LGA775 Socket |
| Multi-Core Support: | Dual-Core / Quad-core |
| Chipset Type: | Intel G31 Express / Intel ICH7 |
| Max Bus Speed: | 1333 MHz |
| BIOS Type: | Intel |
| Storage Controller: | ATA-100, Serial ATA-300 |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
| Processor | |
| Installed Qty (Max Supported): | 0 ( 1 ) |
| Memory | |
| Supported RAM Technology: | DDR II SDRAM |
| RAM Installed ( Max ): | 0 MB / 4 GB (max) |
| Supported RAM Speed: | PC2-6400, PC2-5300 |
| RAM Features: | Unbuffered, two DDR channels |
| Video | |
| Graphics Controller: | Intel GMA 3100 |
| Video Memory: | Dynamic Video Memory Technology 4.0 |
| Audio | |
| Audio Output: | Sound card |
| Audio Codec: | Realtek ALC888 |
| Sound Output Mode: | 5.1 channel surround |
| Compliant Standards: | High Definition Audio |
| Telecom / Networking | |
| Networking: | Network adapter, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | |
| BIOS Features: | ACPI support, SMBIOS support, Hyper-Threading Technology |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Sleep / Wake Up: | Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on PCI device, wake on USB port |
| Expansion / Connectivity | |
| Expansion Slot(s): | 1 processor, LGA775 Socket , 2 memory ( 1.8 V ), DIMM 240-pin , 2 PCI , 1 PCI Express x1 , 1 PCI Express x16 |
| Storage Interfaces: | Intel ICH7 : ATA-100, connector(s): 1 x 40pin IDC, 2 device(s) , Intel ICH7 : Serial ATA-300, connector(s): 4 x 7pin Serial ATA, 4 device(s) |
| Interfaces: | 4 x Hi-Speed USB, 4 pin USB Type A , 1 x keyboard, generic, 6 pin mini-DIN (PS/2 style) , 1 x mouse, generic, 6 pin mini-DIN (PS/2 style) , 1 x network, Ethernet 10Base-T/100Base-TX/1000Base-T - |
| Additional Connectors (Optional): | 4 x Hi-Speed USB |
| Miscellaneous | |
| Cables Included: | 1 x IDE cable , 2 x Serial ATA cable , 1 x floppy cable |
| Software Included: | Intel Express Installer |
| Package Type: | Bulk |
