Fujitsu Fi 7700 Production Scanner

Fujitsu Fi 7700 Production Scanner
Fujitsu
Fujitsu Fi 7700 Production Scanner
"ADF (Automatic Document Feeder) + Flatbed, 100 ppm (A4 Landscape) / 80 ppm (A4 Portrait) ; 200 ipm / 160 ipm (200 and 300 dpi); Simplex & Duplex scanning; 150 dpi-600 dpi ; paper chute capacity: 300 sheets (A4)", A3,A4, A5, A6, B5, B6, Business card, Postcard, Letter, Legal and Custom sizes; Automatically recognizes document type by paper length PaperStream IP (TWAIN) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for Fi-Series, Scan to Microsoft Sharepoint (web download only), Scanner Central Admin Tools, Best Feature: A3 scanner (Flat Bed and ADF)

Price:  549,990

Free Downloads

Linux for Human Beings
LibreOffice.org
avast! Free Antivirus
Download Firefox — Free Web Browser
Use OpenOffice.org
Installment Promo! Easy Monthly Payments.

Pay only P 51,790 a Month for 12 months.

Or pay only P 98,081 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment

Overview

Heavy-duty & flexible production scanner for professional use

fi-7700The fi-7700 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards, books, magazines, envelopes, and long page documents can be scanned on this scanner.


  • Fast scanning — up to 100 ppm in color or monochrome, landscape
  • Paper chute capacity up to 300 sheets
  • Capable of handling various thicknesses and sizes
  • Paper Protect function which protects against paper jams by detecting anomalies in sound (iSOP: Intelligent Sonic Paper Protection) and document length
  • Flexible design and LCD panel for easy operation
  • Independent Side Guides for easily aligning mixed size documents
  • Comes with PaperStream IP (TWAIN/ISIS) and PaperStream Capture

Features

Stable and smooth scanning of large volumes and various types of documents


Mechanism for stable paper feeding and ejecting that prevents document damage and paper mis-feeds

  • Scan various types of business documents with a single scanner
    staright paperThe straight paper path design provides reliable scanning regardless of the condition and type of paper.


    The Paper Picking Control function observes each document’s movement, and controls the pressure put on the papers that are set on the chute, making smooth continuous feeding possible.

    Manual/Single ModeBy simply changing the feed mode to Manual/Single mode, you can easily scan thick documents such as drawings folded in half, multi-layered receipts, and envelopes with the same straight paper path operation.

  • Protect important information by preventing missing edges and document damage

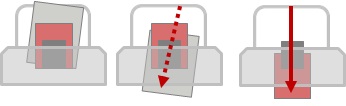

    Skew Reducer helps improve the feeding performance significantly and prevents a scanned image from missing an edge.


    document damage


    Paper Protection function minimizes the risk of document damage and protects your important documents by detecting anomalies in sound and document length.

Design that meets the user’s needs

The fi-7700 helps improve the efficiency of operations by providing a variety of functions that make scanning easier for the user.

  • Fully utilize allocated space with its flexible design

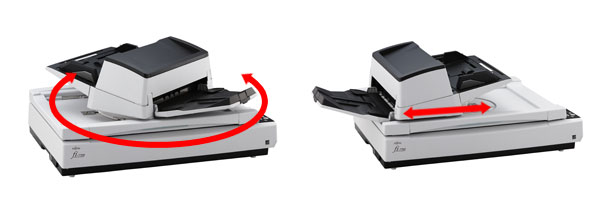

    The scanner is equipped with an ADF that can slide to the right or left or rotate 180 degrees. A user can load documents easily for scanning by adjusting the ADF to suit the user's office or workspace environment.

    flexible design


    operation panelThe operational panel is equipped with an LCD to easily check the status of the scanner.
  • Reduce the workload before and after scanning from setting to collecting documents
    setting documentWhen setting documents, you can easily align the edges of the documents with independent Side Guides even if the size of each document varies.


    stacker side guideStacker Side Guides reduce the time and effort required for aligning and putting away documents after a scan by preventing scanned documents from being unevenly stacked or aligned.


    flatbedThe Cover-open Cropping function automatically recognizes the document’s size, even when the cover is opened, and eliminates the hassle of opening and closing the cover when consecutively scanning documents.


Advanced software for your work efficiency

  • Connect your business workflow with PaperStream IP and PaperStream Capture
    The PaperStream IP scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine settings adjustment for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern. With an intuitive interface, PaperStream Capture effectively and efficiently allows you to feed information into your organization's workflow through various capture features during batch scanning.

    PaperStream

  • Barcode recognition, automatic sorting, and indexing
    You can focus on routine tasks (batch scanning) and configure the scanner to create folders that are divided with barcodes or patch codes as well as automatically sort scanned images to save or index them. The automatic selection of a scanning mode according to patch codes allows you to load a mixed batch of documents with different types of documents at the same time. The usability for an administrator and a user is taken into consideration for image processing, which has made simple operations possible and has improved productivity, so that less work is required for a user to sort scanned images.
Technical Specifications:

Descriptionfi-7700
Functional Specifications
Image Sensor TypeColor CCD (Charge-coupled device) x 3 (front x 1, back x 1, Flatbed x 1)
Light SourceWhite LED Array x 6 (front x 2, back x 2, Flatbed x 2)
Multifeed DetectionUltrasonic multi-feed detection sensor, Paper detection sensor
Optical Resolution600 dpi
Output resolution(1)Color (24-bit)50 to 600 dpi
(adjustable by 1 dpi increments), 1,200 dpi (driver)(2)
Grayscale (8-bit)
Monochrome
Output formatColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing4,096 levels (12-bit)
Image Processing FunctionsMulti image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen,Emphasis, Halftone, Dropout color (None / Red / Green / Blue / White / Saturation / Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold, Divide Long Page
Scanning Speed(3)
(A4 Landscape)
ADFColor(4)
Grayscale(4)
Monochrome(5)
Simplex: 100 ppm, Duplex: 200 ipm
(200 dpi / 300 dpi)
FlatbedColor(4)
Grayscale(4)
Monochrome(5)
0.6 Seconds (200 dpi / 300 dpi)
Scanning Speed(3)
(A4 Portrait)
ADFColor(4)
Grayscale(4)
Monochrome(5)
Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
FlatbedColor(4)
Grayscale(4)
Monochrome(5)
0.9 Seconds (200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape)(6)300 Sheets (A4: 80 g/m² or 20 lb.)
Background ColorsADFWhite / Black (switching with command available)
FlatbedWhite (switching to optional black available)
Document SizeMinimum50.8 mm x 69 mm (2 in. x 2.72 in.)
Maximum304.8 mm x 431.8 mm (12 in. x 17 in.)
Long page scanning(7)
(Maximum)
304.8 mm x 5,588 mm (12 in. x 220 in. )
Flatbed
(Maximum)
304.8 mm x 457.2 mm (12 in. x 18 in. )
Paper Weight
(Thickness)(8)
Paper20 to 413 g/m² (5.3 to 110 lb.), A8 size: 128 to 209 g/m² (34 to 56 lb)
Plastic CardUp to 1.4 mm (9)
InterfaceUSB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1
Minimum PC SpecificationCPU: Intel® Core i5 2400S @ 2.5Ghz
Memory: 4.0GB
OS:Windows® 7 SP1 (32-bit)
Software: PaperStream Capture
Physical Specifications
Power Requirements100 to 240 VAC ± 10 %
Power ConsumptionOperating: 64 W or less, Sleep mode: 1.7 W or less,  Auto Standby(OFF) mode: Less than 0.35 W
Dimensions (WxDxH)(10)706 mm x 500 mm x 345 mm (27.8 in. x 19.7 in. x 13.6 in.)
Weight35 kg (77.2 lb.) or less
Environmental CompatibilityENERGY STAR® / RoHS
Operating EnvironmentTemperature5 °C to 35 °C (41 °F to 95 °F )
Relative Humidity20 % - 80 % (non-condensing)
Included ItemsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Included Software / DriversPaperStream IP (TWAIN/ISIS) ,2D Barcode for PaperStream(11), Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(11), Scan to Microsoft SharePoint(11), ABBYY FineReader for ScanSnap(11), Scanner Central Admin
OptionsBlack Document Pad (fi-575BK)
Supported Operating SystemsWindows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
  1. Selectable maximum density may vary depending on the length of scanned document.
  2. When scanning at high resolution (over 600 dpi), some limitations apply to the size of the document that could be scanned, depending on system environment.
  3. Actual scanning speeds are affected by data transmission and software processing times.
  4. Indicated speeds are from using JPEG compression.
  5. Indicated speeds are from using TIFF G4 compression.
  6. Maximum capacity varies, depending upon paper weight.
  7. It becomes the following specifications with resolution.
    200 dpi or less : 220 in. (5,588 mm)
    300 dpi or less : 215 in. (5,461 mm)
    400 dpi or less : 160 in. (4,064 mm)
    600 dpi or less : 106.3 in. (2,700 mm)
  8. The paper weight only applies to using the ADF.
  9. Capable of scanning up to 3 cards at a time. (Note: only one embossed card can be scanned at a time.)
  10. Excluding the ADF paper chute and Stacker.
  11. The software can be downloaded from the website designated in the Setup DVD-ROM.
