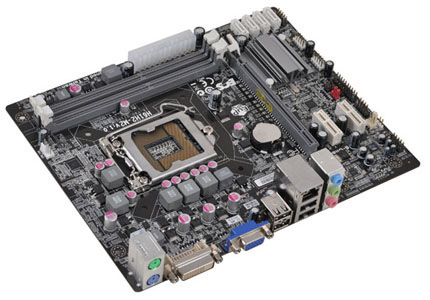

ECS H61M2 Sandy Bridge Socket 1155 MATX Motherboard
High performance ECS Motherboard H61H2-M2 supporting latest socket LGA 1155 Intel® 2nd Generation Core™ i7 / i5 / i3 Processors. It Features Intel H61 Express chipset with SATA 3Gb/s and digital output delivers smooth blu-ray and HD video playback for the best visual experience.
Asianic Online Cash Special at 2,250
Intel® Extreme Tuning Utility is the ideal way to
monitor and boost the performance of your of Intel®
technology-based PC. Automatic performance tuning
reduces the overclocking effort for everyone, while
expert users retain the option to personalize their
*ONLY Support With Windows 7
Blu-ray - With integrated graphics core, the motherboard delivers better HD video quality along with best-in-class 3D performance. Smoothly playback all H.264, VC-1, and MPEG-2 video with minimal CPU usage so the PC is free to do other work.
Dual Channel DDR3 1333 - Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance at lower power.
PCI EXPRESS 2.0 - The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
SATAII 3.0Gb/s - Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.
6 Channel High Definition Audio - Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
DVI Output - A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
eJIFFY - ECS eJIFFY is a Linux based interface for a fast boot application which is compressed in a CD to install on the hard drive.Within 8 seconds after the computer boots up, eJIFFY is ready to provide users the total enjoyment for web browsing, photo reviewing and on-line chat. Instead of waiting for the regular OS to start up, eJIFFY serves a convenient center to have quick fun or a glance at the hot news in today’s fast pace world where nothing can be too quick.
eSF(ECS Smart Fan Utility) - ECS Smart Fan Utility provides smart and user friendly way to adjust fan speed depending on PCs system loading and temperature. It offers five modes to adjust fan speed within safe range without entering BIOS for smart, easy and silent environment.
Norton™ Internet Security - Simple, Easy-to-Use Interface, delivers fast and comprehensive online threat protection, guarding your PC, network, without slowing you down. Giving you greater insight into downloaded applications, whether they can be trusted, and how they may impact your PC’s resources and performance Offering users a safer and more convenient environment than ever.ECS recommends the immediate installation of Norton Internet Security of your computer.
Intel® Turbo Boost Technology - Intel® Turbo Boost Technology automatically allows processor cores to run faster than the base operating frequency if it's operating below power, current, and temperature specification limits. Intel Turbo Boost Technology 2.0 delivers intelligent and energy efficient performance on demand.
EUP 2013 - ECS Motherboards have been certified by EuP 2013 of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
VRD 12 Compliant - Voltage Regulator Down (VRD) 12 is the newest(2010 release) power standard that provides better energy efficiency for Intel processors by advanced power supplying. The energy can be greatly saved during idle operation or other low load conditions.
º LGA1155 socket for new 2nd Generation Intel®
Core™ i7 series processor/Intel® Core™ i5
series processor/Intel® Core™ i3 series
º 4+1 Phase Power Design with VRD 12.0 Compliant
º Intel® H61 Express Chipset
º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 16 GB*
º Support DDR3 up to 1333/1066 DDR3 SDRAM
º *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
º 1 x PCI Express x16 Gen2.0 slot
º 2 x PCI Express x1 slots
º Support by Intel® H61
• 4 x Serial ATA 3.0Gb/s devices
º VIA® VT1705 6-channel audio CODEC
º Compliant with HD audio specification
º Atheros AR8152-B 10/100 Fast Ethernet Controller(Co-lay
AR8151-B Gigabit Lan)
|REAR PANEL I/O||
º 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x D-sub(VGA)
º 1 x HDMI Port(Optional)
º 1 x DVI Port
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 4 x USB 2.0 Ports
|INTERNAL I/O CONNECTORS & HEADERS||
º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin 12V Connector
º 1 x 4pin CPU_FAN connectors
º 1 x 3-pin SYS_FAN connector
º 1 x Speaker header
º 1 x SPDIF out header
º 1 x Clear CMOS header
º 1 x Serial Header(COM)
º 4 x SATA 3Gb/s connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x TPM header
º 1 x Case open header
º 1 x Front panel audio header
º 1 x Front panel switch/LED header
º AMI BIOS with 32Mb SPI ROM
º Audio, LAN, can be disabled in BIOS
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º F11 hot key for boot up devices option
º Supports ACPI & DMI
º Support eJIFFY
º Support eBLU
º Support eDLU
º Support Page Up clear CMOS Hotkey
º Support eSF
º Support ECS M.I.B III Utility
º Support Milti-language BIOS Utility
º Micro-ATX Size, 225mm*180mm
