D-Link DCS-1130L Wireless IP NetworK Camera
D-Link DCS-1130L Wireless IP NetworK Camera
Allows you to save snapshots and record video and audio directly from the web browser to a local hard drive without installing any?software, You can also record video directly to a local network area storage?device without the need for a dedicated PC. Dual mode recording, View and manage your camera from any?computer over the internet through mydlink.com websiteAvailability: Phased Out
Pay only P 499 a Month for 12 months.
Or pay only P 999 a Month for 6 months.
- 0% interest promo is available for locally issued credit cards
- Card holder must transact inside an Asianic store to avail of the 0% promo
Features
Camera Surveillance for Home & Office
The D-Link DCS-1130L Network Camera is a versatile and unique surveillance
solution for your home or small office. Unlike a standard webcam, the
DCS-1130L is a complete system with a built-in CPU and web server that
transmits high quality video images for security and surveillance. The
DCS-1130L can be accessed remotely and controlled from any PC or notebook
over the local network or through the Internet via a web browser. The simple
installation and intuitive web-based interface offer easy integration with
your existing wired network, or with a 802.11n/g/b wireless network.
DCS-1130L also comes with remote monitoring and motion detection features
for a complete and cost-effective home security solution.
Flexible Recording Functionality
The DCS-1130L allows you to save snapshots and record video and audio
directly from the web browser to a local hard drive without installing any
software, making it convenient to instantly capture any moment from a remote
location. You can also record video directly to a local network area storage
device without the need for a dedicated PC. DCS-1130L can also take
snapshots and record video whenever motion is detected, or according to a
user-defined schedule.
Effortless Access Through mydlinkTM
You can add the DCS-1130L to your account on the mydlink.com website, which allows you to access your camera from any computer over the Internet.
View your camera's live video feed from the office, or configure motion triggered snapshots while away on vacation. With mydlinkTM, it's easy to manage your DCS-1130L anywhere, anytime.

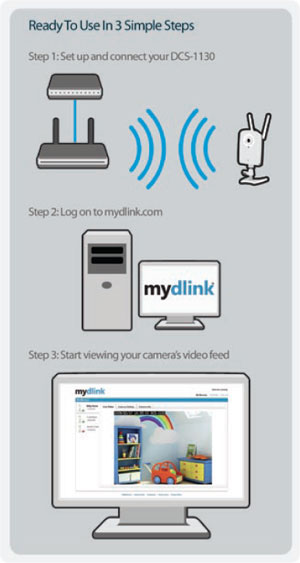

See how easily to setup DCS-1130L in just 3 Simple Steps
In the video, you will see how D-Link DCS-1130L can be setup easily unlike
the conventional way. Accessing it is so much convenient, simply sign up an
account at mydlinkTM web application and you can view LIVE
streaming at anywhere.
Download FREE "mydlinkTM Lite" from Apple App Store or Android
Marketplace and you can access live feed from your iPhone or Android Mobile
Phone.
Package Contains
- Wireless N Network Camera
- CAT5 Ethernet Cable
- Power Adapter
- Camera Base and Mounting Kit
- Quick Installation Guide
- CD-ROM with:?
- Software?
- Product Documentation
Technical Specifications
| Camera Specifications | |
| Sensor: | ¼” CMOS |
| Lens: | 5.01mm, F2.8 |
| Minimum Illumination: | 1.0 Lux @ F2.8 |
| 3A Contr>ol: | AGC, AWB, AES |
| Electr>onic Shutter: | 1/60(1-50) ~ 1/15,000 Sec |
| Zoom: | 16x Digital Zoom |
| Audio | |
| Microphone: | Built-in Omni-directional Microphone |
| Frequency: | 50 ~ 16000Hz |
| S/N Ratio: | 6mm, -40db + 3db |
| Video Formats Supported: | MPEG-4 and MJPEG (Simtrtaneous Dual Format Compression) JPEG for Still Images |
| Display type: | ActiveX Java |
| Mtrti-Profile: | Supports 4 profiles simtrtaneously |
| Features: | Adjustable image size and quality Time stamp and text overlay Three configurable motion detection windows Flip and Mirror |
| Resolution: | Up to 30 frames at 640x480 Up to 30 frames at 320x240 Up to 30 frames at 160x120 |
| Connectivity: | Wireless (Draft 802.11n) Network (Backward compatible with 802.11g) Wired (10/100 Fast Ethernet) Network |
| Security: | Password Authentication |
| LEDs: | Power/Link |
| Networking Protocols: | IPV4, ARP, TCP, UDP, ICMP DHCP Client NTP Client (D-Link) DNS Client DDNS Client (D-Link) SMTP Client FTP Client HTTP Server Samba Client PPPoE UPnP Port Forwarding RTP RTSP RTCP 3GPP |
| Certifications: | FCC Class B IC CE C-Tick |
| Power: | |
| External Power Supply: | 5VDC, 2.5A |
| Consumption: | 4 Watts Max |
| Temperature: | |
| Operating: | 32°F to 104°F (0°C to 40°C) |
| Storage: | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity: | 20%-80% RH Non-condensing |
| Dimensions (L x W x H): | Item: 1.5" x 3.2" x 4.7" (38 mm x 81mm x 119mm) Packaging: 1.6" x 10.8" x 8.2" (41mm x 274mm x 208mm) |
| Weight: | Item: 0.5 lbs (226.8 g) Packaging: 2.0 lbs (907.2g) |
| Warranty: | 1 Year Limited* |
| Minimum System Requirements: | Wireless (Draft 802.11n) Network PC with: 1.3 GHz Processor 128MB Memory Windows 7, Vista® or Windows® XP SP2 Internet Explorer® v6 and later |
| Mtrtiple Camera Operation Requires: | Wireless (Draft 802.11n) Network PC with: 2.4GHzProcessor 512MB Memory 32MB Video Card Windows 7, Vista® or Windows® XP SP2 Internet Explorer® v6 and later |
| Package Contents: | Wireless N Network Camera CAT5 Ethernet Cable 2 Detachable Antennas Power Adapter Camera Base and Mounting Kit Quick Installation Guide CD-ROM** with: Software Product Documentation |
