DeepCool V4600 4 HeatPipe 2 Fan VGA Cooler
DeepCool V4600 4 HeatPipe 2 Fan VGA Cooler

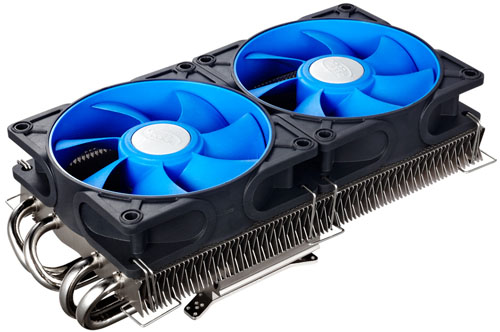

Multi-compatible VGA cooler for mainstream NVIDIA and ATI VGA cards. 4 heatpipes transfer heat from the base to heatsink efficiently. Aluminum heatsink with dense fin array offers high cooling performance. Dual 92mm fans with TPE cover fan frame to absorb operating vibration and noise maximally.
Price: ₱ 2,000
Features
- Multi-compatible VGA cooler for mainstream NVIDIA and ATI VGA cards.
- 4 heatpipes transfer heat from the base to heatsink efficiently.

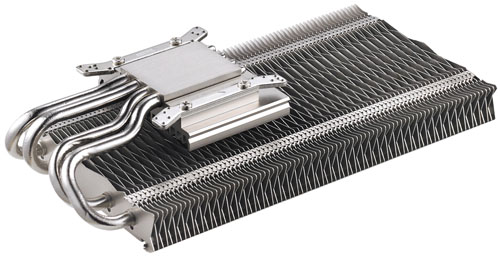

- Aluminum heatsink with dense fin array offers high cooling performance.
- Dual 92mm fans with TPE cover fan frame to absorb operating vibration and noise maximally.
Application For
- 43mm Mounting holes
- ATI Radeon HD 5770/5750/5670
- ATI Radeon HD 2600 Series
- ATI Radeon X1600 Series
- NVIDIA Geforce 8600/8500/8400/
7600/7400/7300 Series - NVIDIA Geforce 6600 Series(Except 6600 AGP Series)
- 51/61mm Mounting holes
- NVIDIA Geforce GTX 200 Series
- 53mm Mounting holes
- ATI Radeon HD 5870/5850/4870/4860/
4850/4830/4750/4670/4650/3870/3850/
3690/3650/3450 - ATI Radeon X1900 Series
- NVIDIA Geforce GT 210/220/240
- NVIDIA Geforce GTS 250
- NVIDIA Geforce 9800/9600 Series
- NVIDIA Geforce 9500GT
- NVIDIA Geforce 9400GT
- NVIDIA Geforce 6600 Series(Except 6600 AGP Series)
- 80mm Mounting holes
- NIVDIA Geforce 7400 Series
- NIVDIA Geforce 7600 Series
- 51-61mm Mounting holes
- NVIDIA Geforce GTX 460
Technical Specifications
| Overall Dimension | 208×110.5×63.5mm |
| Fan Dimension | 92X92X25mm |
| Net Weight | 666g |
| Bearing Type | Hydro Bearing |
| Rated Voltage | 12VDC |
| Operating Voltage | 10.8～13.2VDC |
| Started Voltage | 7VDC |
| Rated Current | 0.16±10%A |
| Power Input | 1.92W |
| FAN Speed | 1800±10%RPM |
| MAX.Air Flow | 66CFM |
| Noise | 24.6dB(A) |
