DeepCool Ice Blade Fan with PWM Y Connector
DeepCool Ice Blade Fan with PWM Y Connector

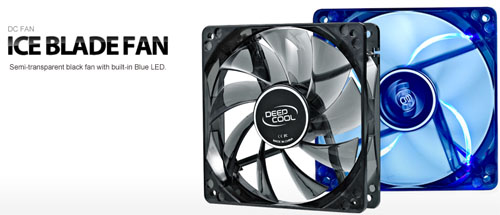

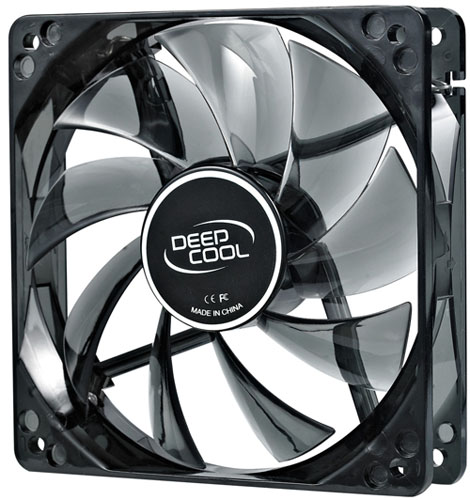

Modern looking semi-transparent black case fan with 4 blue LED to give good visual effect.Y-shape adapter for dual fan mounting.PWM function with fan speed control.Fan speed: 900±150~1500±10%RPM.
Features
- Modern looking semi-transparent black case fan with 4 blue LED to give good visual effect.

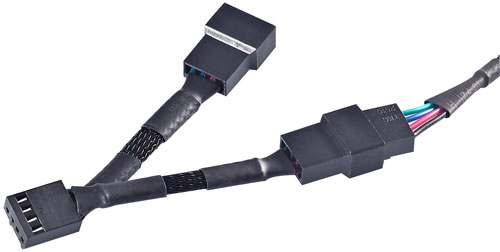

- Y-shape adapter for dual fan mounting.
- PWM function with fan speed control.
- Fan speed: 900±150~1500±10%RPM.
Application For
Computer case cooling.
Power supply cooling.
Technical Specifications
| Overall Dimension | Ф120X25mm |
| Fan Dimension | 120X120X25mm |
| Net Weight | 118g |
| Bearing Type | Hydro Bearing |
| Rated Voltage | 12VDC |
| Operating Voltage | 10.8～13.2VDC |
| Started Voltage | 7VDC |
| Rated Current | 0.25±10%A(MAX) |
| Power Input | 3W |
| FAN Speed | 900±150~1500±10%RPM |
| MAX.Air Flow | 60.29CFM |
| Noise | 21.4~32.1dB(A) |
Last Update: May. 13, '13
