Deepcool Assassin Ultimate Gamer Storm CPU Cooler

Deepcool Assassin Ultimate Gamer Storm CPU Cooler
Deepcool

Deepcool Assassin Ultimate Gamer Storm CPU Cooler

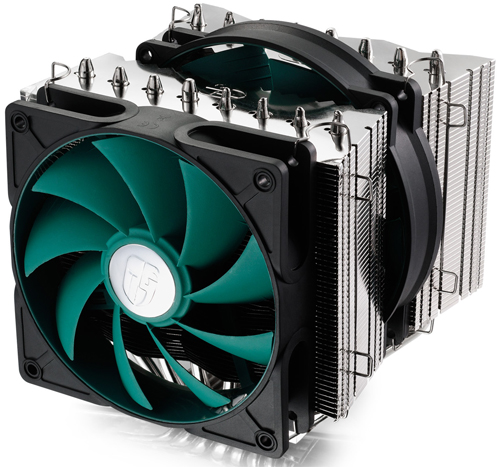

The new cooler consists of two nickel-plated towers supported by eight 6mm copper heatpipes. Two fans will be included, both held in place by a patented rubber frame cover. One 120mm fan will push air through the heatsink, the other 140mm can be positioned in between the two towers to enhance the CPU's performance. It will support Intel's LGA775/1155/1156 and 1366 sockets along with AMD's AM2/AM2+ and AM3 sockets

Price:  P 2,999

Features

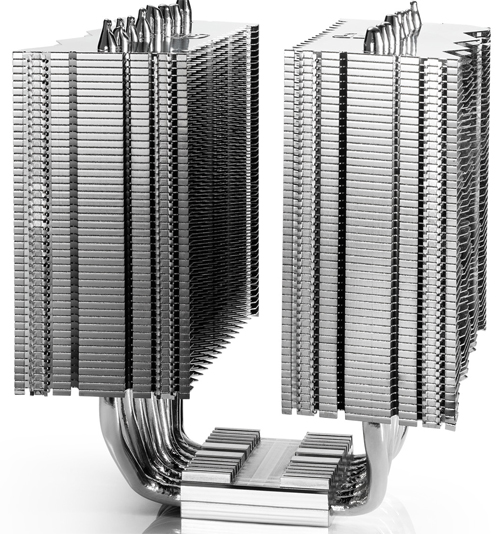

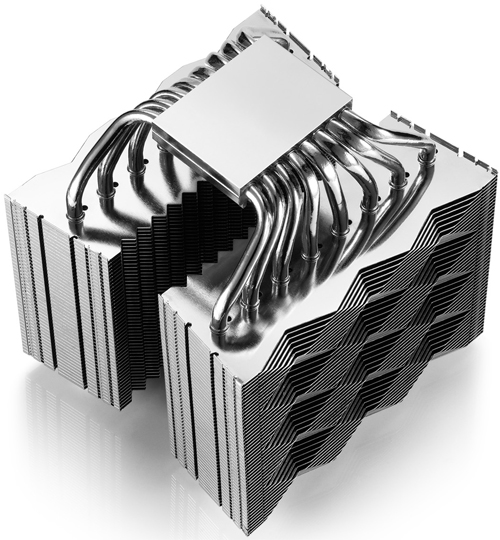

Twin Tower Heatsink

The twin tower heatsink sets provides more heat dissipation area than traditional heatsinks. More than 2 fans can be mounted on the heatsink sets to achieve extraordinary cooling performance. Shark teeth fin design not only advocates aesthetics of heatsink but also allow better air conduction between fins. The whole heatsink sets are nickel plated for appealing appearance and also for gaming spirits.

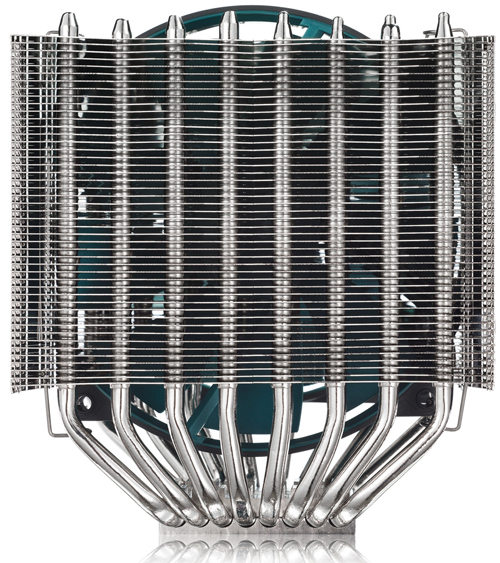

8 pieces of U-shaped Heatpipe

Eight pieces of high cooling performance copper heatpipe ensures the best cooling effect for the processor. The heatpipes are scientifically bended to achieve optimal balance with the heatsink fins.

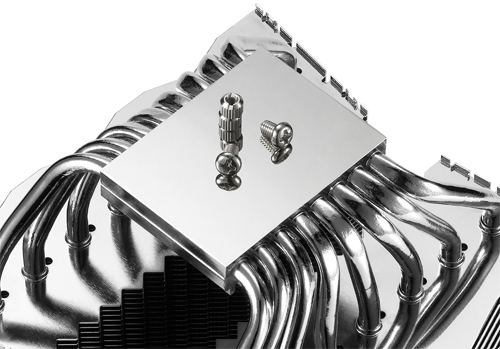

Mirror Finished Copper Base

Eight heatpipes are firmly soldered onto the copper base to enhance the heat conductivity from the processor to the heatsink. For the quickest heat transfer, the copper base has been CNC machined to extremely flat, just like a mirror.

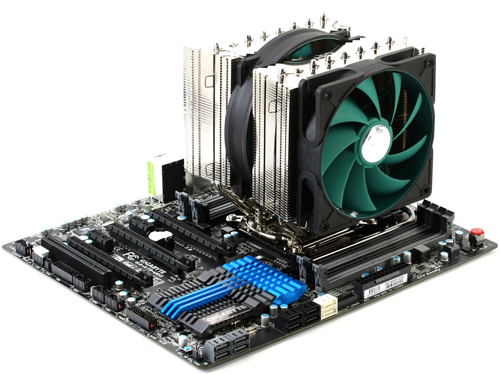

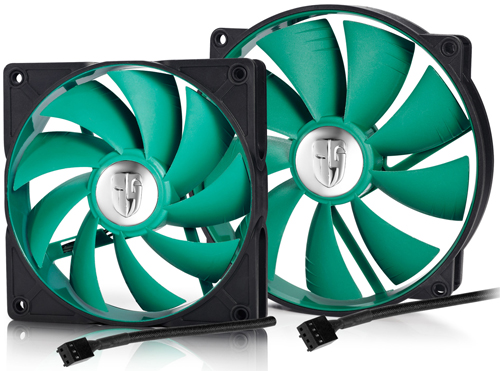

12+14cm De-Vibration TPE Cover Fan

De-vibration TPE cover is a soft and elastic material which can absorb the operating vibration and noise maximally. Assassin equips with one 120mm and one 140mm fans to fulfill your harsh cooling requirement at lowest noise.


Additional Features



  • Shark teeth fin design not only advocates aesthetics of heatsink but also allow better air conduction between fins.



  • Patented UF fan series enhance the cooling performance by providing high airflow. At the same time, de-vibration rubber absorbs operating noise for a quite using environment.



  • Designers strive to get the best from every aspect of ASSASSIN. This cooler may not surprise you by its appearance but it will definitely surprise you by its astonishing cooling performance.

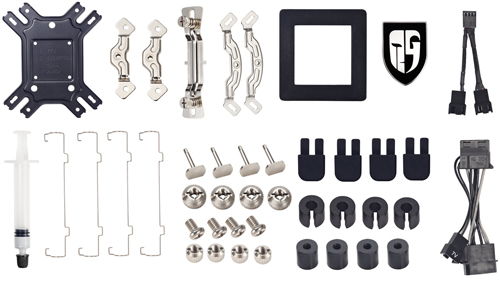

  • ASSASSIN is compatible with the latest Intel Socket LGA2011. At the same time, it’s equipped with a full set of installation kits for all the mainstream processors in the market.

Application For

    • Intel Socket
    • LGA2011/LGA1366/LGA1156/LGA1155/LGA775
  • Core i7/i5/i3
  • Core 2 Extreme
  • Core 2 Quad
  • Core 2 Duo
  • Pentium/Pentium G
  • Pentium D/Pentium 4
  • Celeron Dual-Core
  • Celeron/Celeron D
    • AMD Socket
    • FM1/AM3+/AM3/AM2+/AM2
  • FX X8/X6/X4
  • A8/A6/A4
  • Phenom II X6/X4/X3/X2
  • Phenom X4/X3
  • Athlon II X4/X3/X2
  • Athlon X2
  • Athlon /Athlon FX
  • Business Class
  • Sempron

Technical Specifications

Overall Dimension (Without Fan) 140X128X158mm
Overall Dimension (With Fan) 144X154X160mm
Heatpipe 8X6mm Heatpipe
Net Weight 1378g (With Fan)
Fin Material Aluminum
Base Material Full Copper Base
Fan Dimension 140X140X25mm, 120X120X25mm
Fan Weight 143g, 165g
Fan Speed 700±200~1400±10%RPM, 1200±10%RPM
Rate Current 0.17±10%A(MAX), 0.09±10%A
Power Input 2.04W, 1.08W
Max. Air Flow 80,28 CFM, 52.35 CFM
Noise 18.2~32dB(A), 23.2dB(A)
Rated Voltage 12V
Operating Voltage 10.8～13.2VDC
Starting Voltage 7V
Bearing Type Hydeo Bearing

Overall Dimension

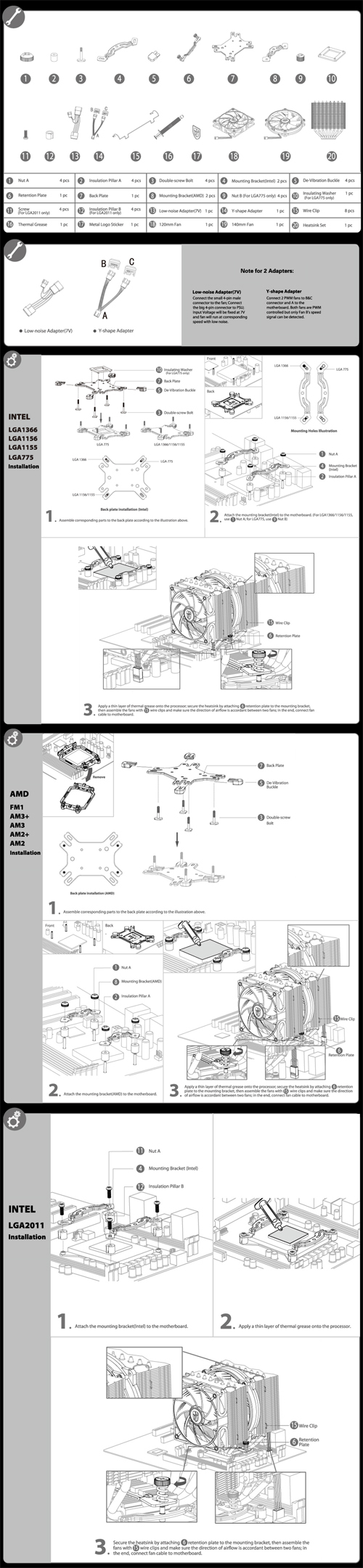

Installation
