Across SVR-7504D H264 4 Channel 2 Camera Survellance System

Across SVR-7504D H264 4 Channel 2 Camera Survellance System
Across

Across SVR-7504D H264 4 Channel 2 Camera Survellance System
H.264 SOC video compression algorithm, low power consumption, super function etc. D1 HD video quality; 4chs D1 real-time record, Linux RTOS, good network transmission performance, high stability. User-friendly design. Mouse, panel, and IR controller operation supported. with 2 set 24 LED Night Vision CCTV Camera and 2 Roll of 20 Meter CCTV Cables.

Price:  P 11,999

Installment Promo! Easy Monthly Payments.

Pay only P 1,129 a Month for 12 months.

Or pay only P 2,139 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment

Features




- H.264 SOC video compression algorithm, low power consumption, super function etc.
- D1 HD video quality; 4chs D1 real-time record (for HW-SVR7504), 4chs D1 and 4chs CIF real-time record (for HW-SVR7508);
- Linux RTOS, good network transmission performance, high stability.
- User-friendly design. Mouse, panel, and IR controller operation supported.
- One SATA HDD support large capacity HDD with 2T.
- Support motion detection, synchronously monitor function etc.
- USB flash drive backup, DVD-RW drives backup, remote backup and so on.
- Manual record, timing record, alarm record and multi record way.
- Multiplex: Support preview, playback, backup, network transmission simultaneously.
- Support 4chs Audio/Video playback. Recorded file can be searched by time, event, channel, and log.
- VGA output, monitor output supported.
- Double USB2.0 high speed interface supported.
- Mobile phone (including 3G) wireless monitor supported.
- Video stream and compass stream are supported for all channels; CMS supported;
- Support own domain name www.***viewnvr.com，which keeps SVR net service stable and reliable.

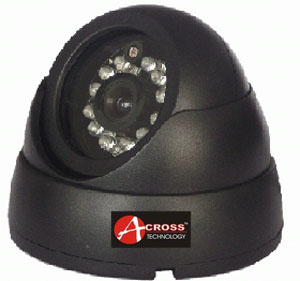

2 Set 24 LED Nigh Vision Color CCTV Doom Type Camera
- 1/3 Sony CCD
- Day & Night automatic switch.
- Built-in infrared light source 20 m
- Built-in CS fixed Focus IR lens (3.6mm/F1.5)
- Electronic Shutter Speed 1/50(1/60)~1/100.000(S)
- Shows excellent image quality in 0 Lux
- Special conch shell design, ease of removal, installation and maintenance
- Applicable 24-hour long distance monitoring, especially fit to the shops、hotels、supermarkets and Cell etc.
- Camera is without bracket

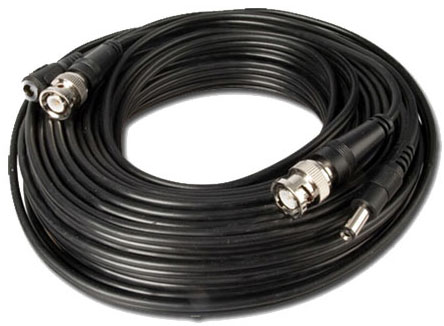

2 Roll CCTV 20 Meter Cable

Anti Interfearance

To connect CCTV cameras to DVR, VCR, PCI DVR or TV

Weather and tamper Proof

Standard BNC (Video)

Standard 2.1mm Male/Female DC (Power)

High Quality Manufactured


Technical Specifications

4 Channel Survellance system
Model
HW-SVR7504D
operating system
Embedded Linux Operating System
Backup
USB-HDD, Network Backup, USB backup
Language
English
Video specification:
Compression Algorithm
H.264 Baseline
Playback Resolution
PAL:720x576(D1); NTSC:720x480(D1)
Video Input
4chs
Video Output
1 VGA output, 1 TV output (BNC connector)
Frame rate
25F/S/CH (PAL, SECAM)(adjusting); 30F/S/CH (NTSC)(adjusting)
Audio specification:
Compression Algorithm
G.726 ADPCM
Audio Input
4chs, RCA connector, 2Vp-p, 600Ω
Audio Output
1ch audio output, RCA connector, 2Vp-p, 600Ω
Voice intercom
1ch interphone, RCA connector
Output sampling rate
8KHz
Sample size
16bit
Working environment:
Network Port
1 10/100M RJ45 port
Communication Port
1 RS485 port, 2 USB connector, 1 SATA interface
Alarm Input
4chs
Alarm Output
1ch
PTZ
RS485
Support HDD
2T
Working Temperature
0℃~+50℃
Working Humidity
10%~90%
Power Supply
DV12V 3A
Working Voltage
DC12V±5%
Power Consumption
< 24 W
Dimension
290(L)*230(W)*48mm(H)

24 LED Night Vision Camera
Model
NRS30A24
Image Sensor
1/3``SONY super HADII CCD
Sensor area
4.9mmx 3.7mm
Signal system
PAL/NTSC
Effective Pixels
PAL:500(H) x582(V)
NTSC:510(H) x492(V)
TV lines
420TV lines
Illumination
0 Lux(IR on)
Built-in Lens
3.6mm/F1.5
S/N Ratio
>48dB
Electronic Shutter
1/50(1/60)~1/100.000 sec.
White balance
Auto
Effective distance
20m
IR Wavelength
850 mm
Video Output
1.0vp-p.75Ω(BNC)
Power
DC 12V± 0.5% (250mA)
Working temperature
-10℃～+50℃
Size
80*93
Weight
0.2kg
