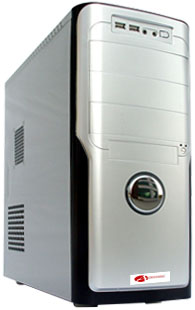

Across ACK-6101 Skaway Mid Tower Computer Case
Across ACK-6101 Skaway Mid Tower Computer Case
Dimension: 438x180x420mm (L x W x H), Case structure: support all ATX/Micro ATX mainboard, Front Panel Port: external USB and Audio port, Drive bay:external 4 x 5.25" Drive bays, internal 5 x 3.5" Drive bays, external 2 x 3.5" Drive bays, and 7 PCI expansion slots, Coolingl features: 8cm/12cm fans optional in front, 8cm fan optional in rear, Air guide optional, Optimized cooling management measure up Intel 38℃ thermal requirement.
Features
Main structure：- SGCC/SECC body, curling edge, EMI contact Shrapnel Design, anti radiation, Antistatic, Anti-rust treatment painting in the surface, matching Intel38℃ casing standard.
- Case structure: support all ATX/Micro ATX mainboard
- Front Panel Port: external USB and Audio port
- Drive bay:external 4 x 5.25" Drive bays, internal 5 x 3.5" Drive bays, external 2 x 3.5" Drive bays, and 7 PCI expansion slots
- Coolingl features: 8cm/12cm fans optional in front, 8cm fan optional in rear, Air guide optional, Optimized cooling management measure up Intel 38℃ thermal requirement.
Front Panel:
- Injection with High-intensity green plastic, snap-in front panel , easy to install or remove, fashion design with many optinoal, external USB & Audio port, power button & front ports marked with clear symbol , easy to operate.
| Side View | Front view | ||
|
|
||
| Rack front view | Rack Internal view | ||
 |
|||
| Characteristic View | |
|
|
| Rack Rear View |
Technical Specifications
| Front USB port | with | |
| Audio/Microphone jack |
with
|
|
| Expansion slot | 7 | |
| Body size (LxWxH) (mm) | 438*175*420 | |
| Metal size | 445x180x420mm (L x W x H) | |
| Carton size (LxWxH) (mm) | 490*230*465 | |
| Net weight (Kg) | 3.9 | |
| Gross weight (Kg) | 4.9 | |
| Structure | 61 ACK Series | |
| Material of case body | 0.6 MM SECC | |
| Front Panel Painting | Glossy Finish | |
